Magic links that launch processes without authentication

The problem with login walls

Every workflow system faces the same friction point. Someone needs to do something in your process. Maybe they are a client approving a proposal. Maybe a vendor submitting documents. Maybe an applicant completing an onboarding form.

The traditional approach: make them create an account, verify their email, set a password, and then find their way back to the task they were trying to complete.

By the time they finish that gauntlet, many have given up.

The principle we landed on was straightforward: if you can prove you own an email address, you should be able to complete tasks assigned to that email without any other authentication.

Our internal documentation for guest emails made this explicit: “No login required - just click to get started.” That single sentence drove most of our architectural decisions.

From accounts to access keys

In February 2017, we completed a design task that fundamentally changed how guest access worked. The notes from that task capture the shift:

“Use a single view of a task with captures and comments to show that it is a scrolling page. No menus or application chrome. Only the task itself.”

And critically:

“Guest users will access the task from their email via a single URL with an access key in the link. Guest users will no longer have accounts.”

This was the architectural decision that enabled magic links. Instead of forcing guests to remember credentials, we embedded authentication into the link itself. Click the link, you are authenticated. No login screen, no password reset flows, no account recovery headaches.

The security evolution we did not plan

Here is the honest story of how our security model evolved. We did not plan this arc - we learned it.

Phase 1: Password-based auth with guest codes

Initially, internal members used standard email/password authentication. External participants received unique access codes sent to their email. Simple, but friction-heavy.

Phase 2: Social login experiments

In January 2017, I wrote in our internal specs: “Social logins would eliminate the need for passwords and assure us of genuine people (not fake emails).”

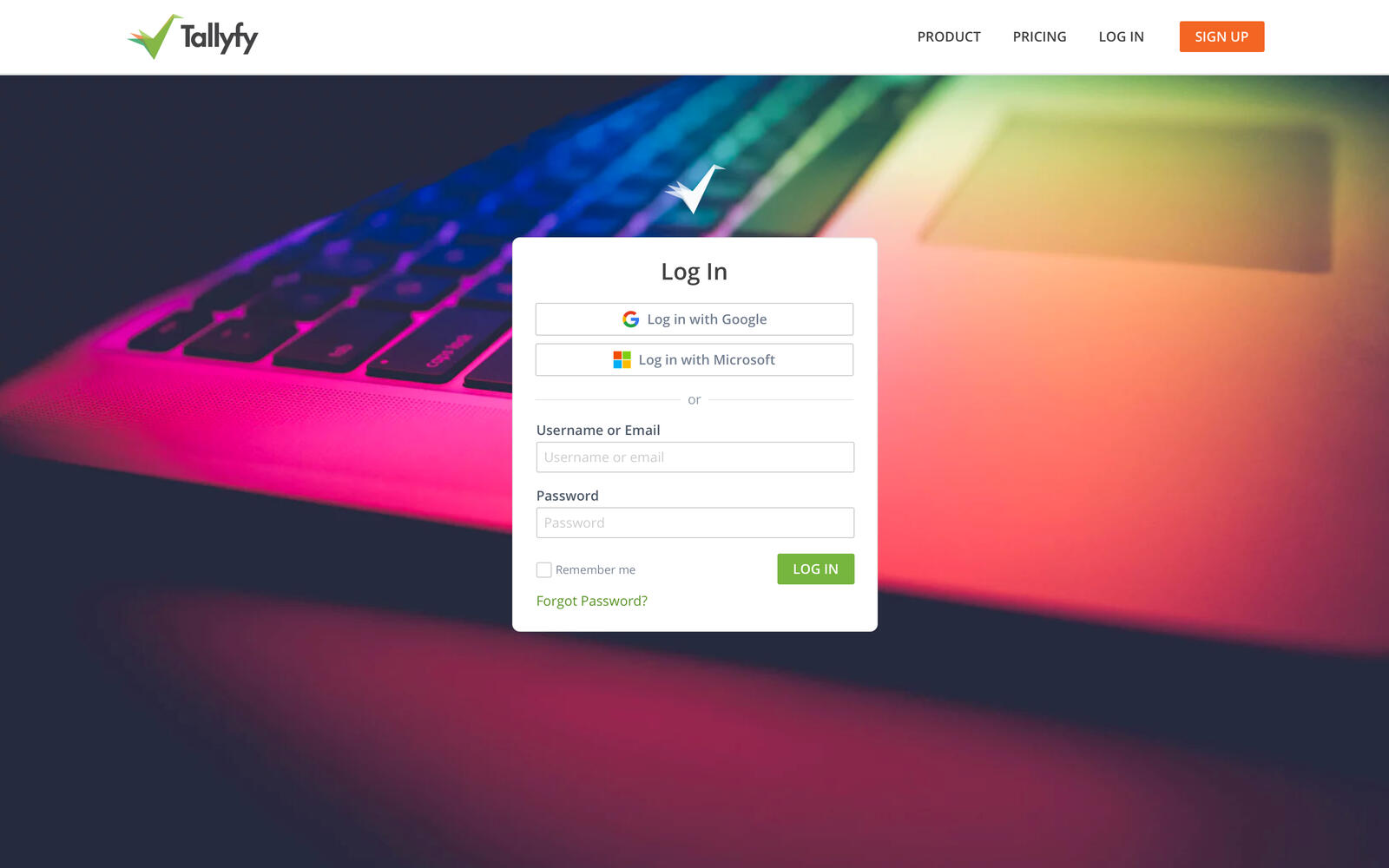

The mockup shows where we were heading - Google and Microsoft OAuth buttons above the traditional login form. This never fully shipped for guests, but it shaped our thinking about trust boundaries.

Phase 3: Magic links added

One-click actions embedded directly in email notifications. Click the link, do the thing, done. No intermediate authentication step.

Phase 4: JWT action tokens

As we built more sophisticated email actions, we moved to signed, time-limited JWT tokens. The internal specification was explicit about the validation chain:

“Store token for replay protection… Check rate limiting… Validate task assignment”

Phase 5: The phishing incident

Then we got burned. An attacker exploited our comment API to bypass all guest creation limits and send thousands of phishing emails through Tallyfy infrastructure.

This forced us to implement strict rate limiting: 100 guests per day per user, capped at 3,000 per month. The specification noted: “Rate limits are high enough for legitimate use (100 guests/day per user = 3,000/month)” - but we now verified every guest creation against these limits.

Phase 6: Session hardening

The final evolution was around session management. Our security specification was clear: “Force sign out all sessions automatically without asking users - keep the experience simple so users don’t have to think about security decisions.”

When a password changed or suspicious activity was detected, all sessions would terminate automatically. No “are you sure?” prompts. Security decisions should not require user input.

Early sketches: what guests actually need to see

When we first designed guest-facing functionality in October 2016, we started with a question: what does an external person actually need?

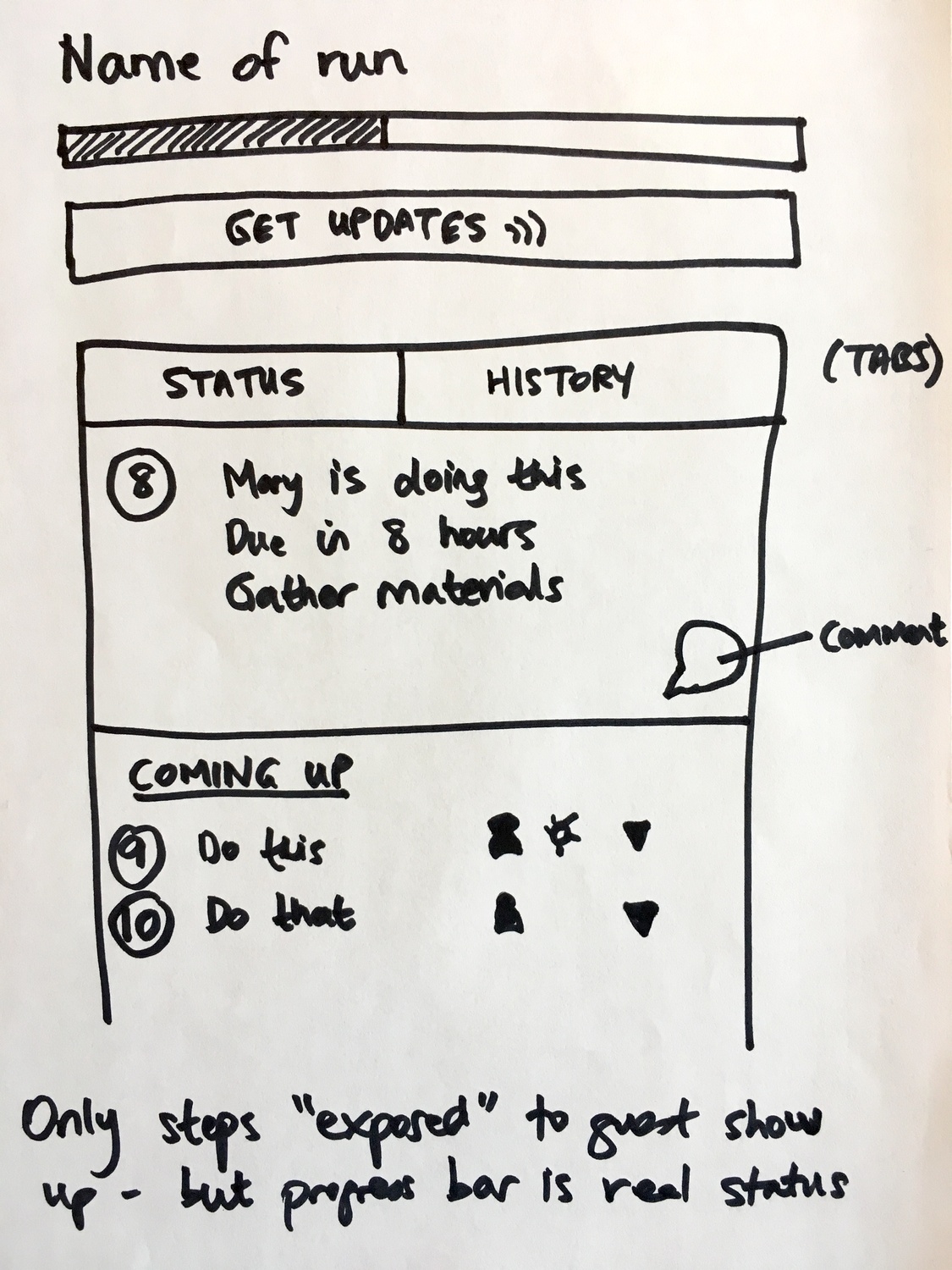

The first sketch showed a minimal interface:

The critical annotation: “Only steps exposed to guest show up - but progress bar is real status”

A guest sees step 8 and steps 9-10 coming up, but the progress bar reflects the entire workflow including hidden internal steps. They get transparency about their progress without seeing internal complexity.

The second sketch zoomed into the interaction model:

The design principle here: “Data hidden away into tabs”

Progressive disclosure. Show what matters right now, collapse the rest. A guest clicking a magic link from email should see their immediate task, not be overwhelmed with workflow complexity.

The onboarding flow that validated emails

In May 2017, I sketched out a different approach to email validation during signup:

“The next screen is ‘We sent a code to your email, please enter it here’. This validates the email is real or not with a 4 digit code, without having to click a link.”

The key insight here was separating email validation from account creation. Validate email early with a code, then collect everything else. Thomas Palumbo, our product designer at the time, captured the philosophy: “The simplicity is needed I think… It feels less form-y and like less work.”

We were not optimizing for signup volume. My note from that period: “We are looking to optimize for high quality revenue and the right customers, not for high volume of signups.”

Token validation chain

When a magic link gets clicked, what actually happens? Here is the validation sequence from our internal specification:

Step 1: Verify cryptographic signature

The JWT token must be signed by our private key. Tampered tokens fail immediately.

Step 2: Check token not already used

Replay protection. Every token gets marked as consumed after first use. Try to reuse it? Rejected.

Step 3: Verify actor is organization member

The user ID embedded in the token must belong to an active member of the target organization.

Step 4: Verify actor is assigned to task

Being in the organization is not enough. You must be specifically assigned to this task.

Step 5: Verify task is in actionable state

Cannot complete a task that is already done, blocked by dependencies, or deleted.

Step 6: Check rate limiting

Even valid tokens get rejected if the user has exceeded action limits. Protection against automated abuse.

The specification was explicit about secrets handling: “Client secrets MUST be stored securely and MUST NOT be transmitted to clients after initial creation… Show secret ONLY on creation.”

One-time display. Once you close that dialog, the secret is gone. If you lose it, you regenerate it. No “show me my secret again” button.

Public kickoff forms: anonymous to identified

Building on the guest workflow access model, we developed the concept of public kickoff forms. These allow anyone - even anonymous visitors - to launch a workflow.

The original design document from August 2017 described it this way:

“A customer journey is a type of Tallyfy process that is designed to run on a public website. Runs of a customer journey are done by an anonymous visitor, until that visitor is identified. Upon identification of an anonymous visitor, a customer journey turns into a run.”

The key transition: anonymous visitor becomes identified participant.

This happens through email. When someone fills out a public kickoff form and provides their email address, they transform from an anonymous form submission into a tracked guest who can receive magic links for subsequent tasks.

The form trigger evolution

In April 2017, we had a naming debate that revealed how we were thinking about public process initiation.

I proposed renaming “pre-run captures” to “Form Trigger”:

“At present, in both builder and start a run - we employ the concept of pre-run fields. These are effectively form fields that are outside of steps. I would like to rename the builder portion of that to Form Trigger - which is effectively a form that triggers at the very beginning of a process to kick things off.”

Our CTO pushed back:

“I am not sure Form Trigger is a much better name. But I do see where you are going.”

The discussion continued:

“Ultimately, we want to embed the form on the web, in the way that Wufoo does. This would enable public forms to be filled out and start a run.”

Thomas Palumbo, our product designer at the time, captured the resolution:

“So hold on the re-naming for now? I can do an audit when we land on the name we want to use and update all the mockups in Zeplin.”

We ended up calling them “kickoff forms” - the form that kicks off a process. But the underlying mechanism stayed the same: collect data, create a run, send magic links to participants.

The public website vs SaaS debate

Not everyone agreed on how far to take the magic link concept.

Pravina Pindoria raised a substantive objection when we discussed embeddable customer journeys:

“The solution you have described seems to be for a public website - Public website journey. However the Box lead is the post sign up process on a SaaS - SaaS onboarding journey. IMO these two are very different - especially in terms of the problem statement and competitors.”

Her specific concerns about public website journeys:

“This is more challenging as the visitor may have started their journey on Quora, external blog-post, conference, word-of-mouth etc. How will you tailor their journey for so many channels? Will you force them to browse everything? Will you force the Tallyfy user to make hundreds of flow combinations?”

My counter-argument focused on the underlying mechanism:

“imo it is the same widget on a public website or a post-signup web app. The only difference is the identity of the person is known for post-signup and so the run has a lot more context/info.”

This debate shaped the final architecture. The magic link mechanism works identically whether someone is:

• An anonymous visitor filling out a public form
• A known contact receiving an email invitation
• A SaaS user in their post-signup flow

The only variable is how much context the system has about them.

Trust boundaries and the email assumption

The magic link model relies on a specific trust assumption: if you control an email address, we trust you are the intended recipient of tasks sent to that address.

This is the same assumption that password reset flows use. It is the same assumption that email verification uses. We are not inventing a new trust model - we are extending an existing one.

The security implications:

1. Magic links expire - Time-bounded validity prevents indefinite access
2. Links are task-specific - Access to one task does not grant access to others
3. Email change revokes access - If an email is removed from a task, outstanding links become invalid
4. Audit trail captures everything - Every magic link click is logged with IP and timestamp

Universal Email Markup: one-click from inbox

The magic link concept eventually extended to in-email actions. A recent internal specification describes:

“Enable one-click task actions directly from email notifications through Gmail schema.org and Outlook Adaptive Cards markup, with universal fallback for all email clients.”

The progression:

1. Original approach: Click link, see task, complete task
2. Enhanced approach: Complete task directly from email interface

The technical implementation uses JWT tokens:

“The fallback link changes from https://go.tallyfy.com/organizations/org/tasks/task to https://api.tallyfy.com/api/inbound-actions/complete?token=jwt”

Same principle, evolved execution. Remove friction between intent and action.

Tracking the guest-to-member conversion

A recent GitHub issue captured why magic links matter beyond just convenience:

“When guests sample Tallyfy, do they feel sufficiently interested to actually sign up as members?”

The answer to this question helps measure:

• Guest-to-member conversion rates
• Viral coefficient of guest experiences
• Network effects between organizations
• Quality of guest user experience as a growth driver

The issue specified webhooks that fire when:

1. An email address that was previously a guest creates a new organization
2. An email address that was previously a guest gets invited as a member to an existing organization

Magic links are not just about reducing friction. They are a deliberate growth mechanism. Every frictionless guest experience is a potential member conversion.

What we left out

Several ideas from early magic link discussions were descoped:

OAuth-based guest login - We designed it. We mocked it up. We never completed it. The idea was that guests could authenticate via Google or Microsoft instead of magic links. The complexity of managing OAuth state for external participants who might only interact once did not justify the implementation cost.

AWS Cognito for guest identity - We considered using Cognito to manage guest identity federations. This would have given us sophisticated identity management out of the box. We decided against it because it added infrastructure dependency for a problem we could solve with signed tokens and email validation.

Referrer-based journey customization - Automatically adjusting the workflow based on whether someone arrived from Quora versus Google versus email. The conditional logic system can achieve similar results manually, but automatic referrer-based routing added complexity without proportional value.

Full website embedding - The vision included embeddable widgets that would run inside third-party websites with one-click Cloudflare and WordPress plugins. We settled on link-based access which covered most use cases with much less maintenance burden.

Anonymous visitor tracking - Tracking website visitors through a journey before they identified themselves raised privacy complexity and GDPR considerations. We drew the trust boundary at email ownership instead.

Variable replacement from HTTP referrer - The original specification mentioned: “For the public website, each variable available in pre-run captures could be usable e.g. if REFERRER_SOURCE equals Quora then do this.” This conditional referrer logic was cut for simplicity.

The relationship to guest workflow access

This magic link functionality builds directly on the guest access architecture we designed. The guest access post covers:

• Why external participants should never need accounts
• How progress bars work for guests
• The rules engine applying equally to members and guests

Magic links are the transport mechanism that makes guest access practical. Without magic links, guests would need to authenticate somehow. Without guest access architecture, magic links would just be a shortcut to a login page.

The two posts together describe the complete external participant experience:

1. How they get into the workflow (magic links)
2. What they can do once they are in (guest access)

Implementation insight: the public kickoff bug

A GitHub issue from our bug tracker reveals how subtle magic link edge cases can be:

“Bug: Steps with assign_run_starter equals false incorrectly get assigned when process launched via public kickoff form”

When a process launches via public kickoff, the “run starter” is the anonymous or guest submitter. Steps that should not be assigned to the run starter were still getting assigned in this context.

This bug illustrates the nuance of magic link workflows. The system needs to distinguish between:

• An internal member starting a run (they might do the first steps)
• A guest submitting a public form (they probably should not own internal steps)

The rules engine had to become context-aware about how a run was initiated.

Why this matters for workflow design

If you are building workflows that involve external participants, the key insight is: authentication friction is conversion friction.

Every login wall you place in front of a guest is a percentage of completions you lose. Every password reset flow is someone who might not come back.

The magic link model inverts the assumption. Instead of “prove who you are, then access your task,” it becomes “here is your task, authenticated by the fact that you received this email.”

This is not removing security. It is relocating it to where users already expect it - their email inbox.

For implementation details and current capabilities, see the process launching documentation and the specific magic links guide.
